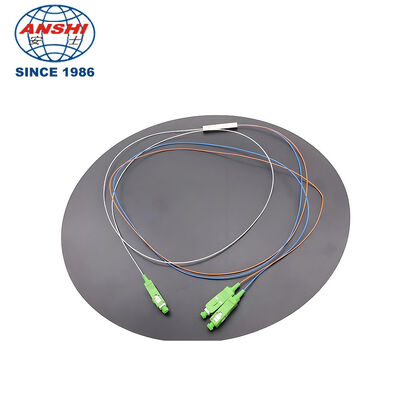

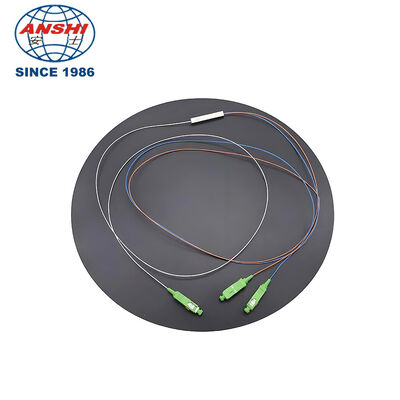

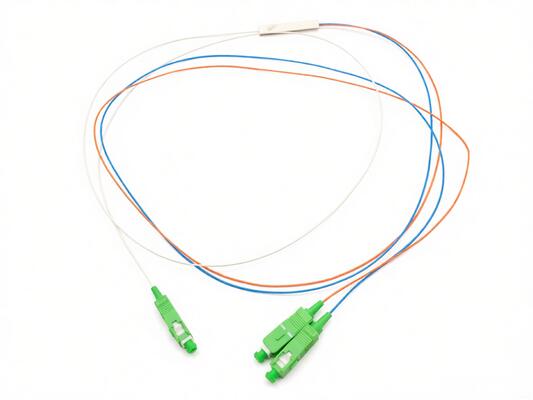

1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design
商品の詳細
| 名前 | 1X2 光 PLC スプリッタ | コネクタの種類 | SC/APC |
|---|---|---|---|
| 波長 | 1310nm/1490nm/1550nm | 応用 | CATV/FTTH/LAN/PON |
製品の説明
ANSHI Fiber Optic Splitter SC/APC 1x2 PLC Optical Fiber Splitter
Product Overview
1x2 SC/APC PLC FTTH Fiber Optic Splitter - Single Mode Optical Coupler. This PLC splitter is a quartz substrate integrated waveguide optical power distribution device featuring compact size, broad working wavelength range, high reliability, and excellent light uniformity. It is specifically designed for passive optical networks (EPON, BPON, GPON) to connect local and terminal equipment while distributing optical signals.
Construction & Design
The bare PLC splitter consists of a PLC splitter chip and input/output optical fiber arrays housed in a square metal tube, available with 0.9mm or 250μm bare fiber outputs. These fibers can be welded or processed with various types of optical fiber connectors.
Technical Specifications
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
|---|---|---|---|---|---|---|
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | G657A1 or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40~85 | |||||
| Storage Temperature (℃) | -40~85 | |||||
| Device Dimension (mm) | 40*4*4 | 40*4*4 | 40*4*4 | 50*4*4 | 50*7*4 | 60*12*4 |
Key Features
- Continuous coverage with different fibers
- Full fiber core structure
- Reusable design
- Optional fiber types
- Low additional loss
- Minimal insertion loss
- Multiple configuration options (2*2, 1*2, 1*4, up to 1*128)
Applications
- Optical Signal Distribution
- Data Communications
- LAN and CATV Systems
- FTTX Deployment
- FTTH Network Infrastructure
- Passive Optical Networks (PON)
- Measuring Systems and Laser Systems
- DWDM and CWDM Systems
